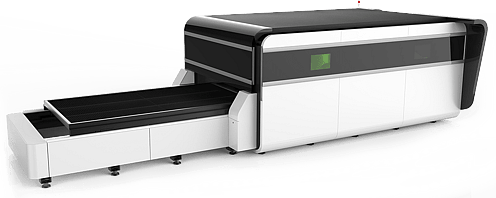

The LF3015GA is one of the most popular machines. With rear loading table and separate air-conditioned electrical cabinet this machine is the ideal heavy production solution for all climates. This model has a larger motor set, giving it huge 1.5G acceleration, for faster cutting/jogging time and therefore production time.

Features

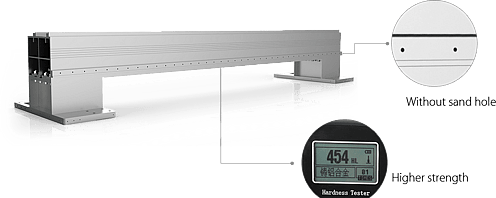

THIRD GENERATION AVIATION ALUMINIUM GANTRYManufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the highest strength among all gantries. Some of the benefits of Aviation aluminium are: -High Strength -Light Weight -Corrosion Resistant

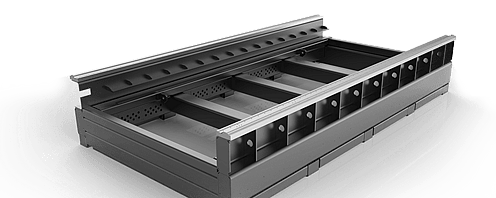

SEGMENTED RECTANGULAR TUBE WELDED BEDThe internal bed structure adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength of the bed, it also increases the stability of the guide rails so as to effectively avoid the deformation of the bed. High strength, stability, tensile strength, ensuring 20 years of use without distortion. The thickness of the rectangular pipe wall is 10mm and weighs 4500 kgs.

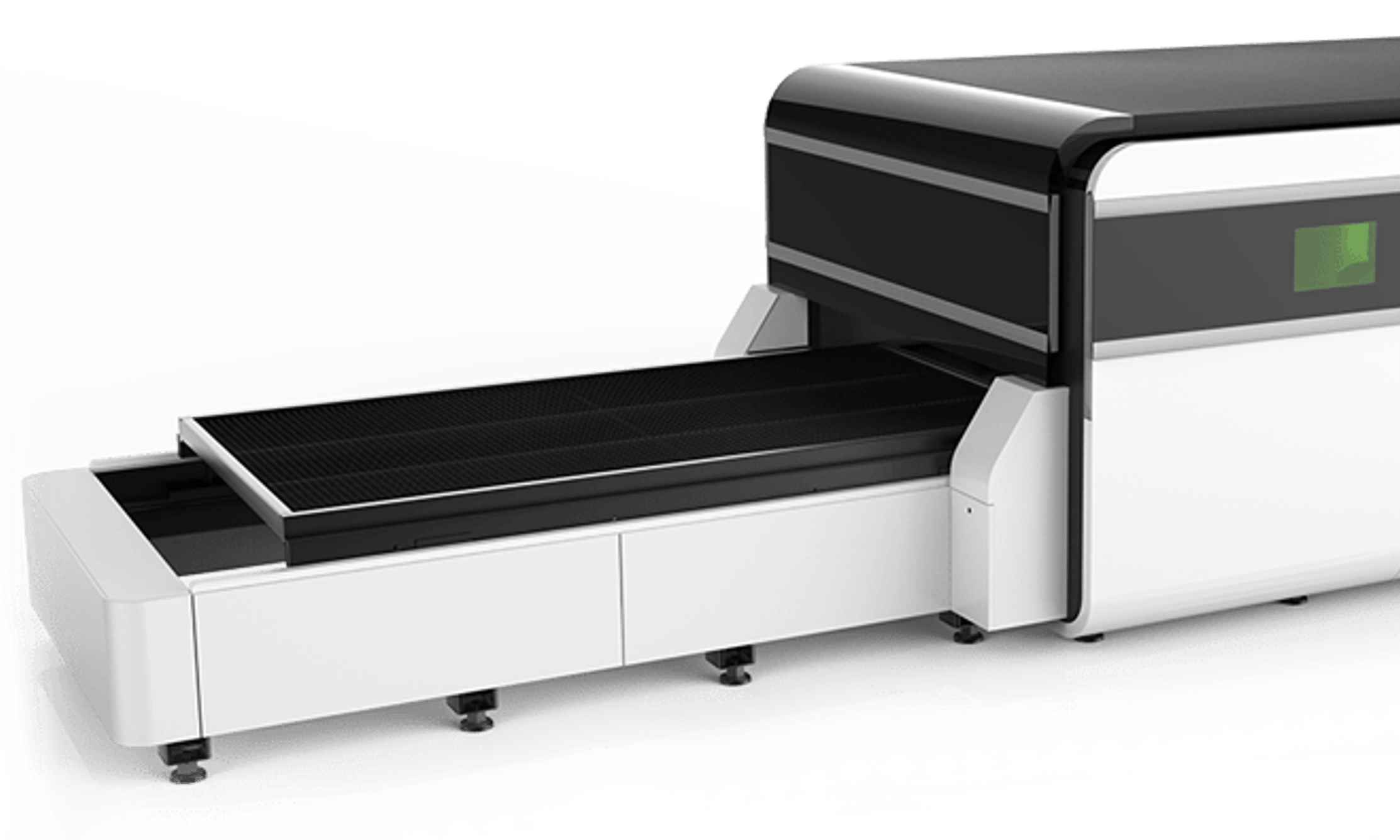

EXCHANGE PLATFORMThe Exchange Platform acts as a loading & unloading platform which saves feed time and improves productivity. The platform exchange is completed within 15s.

AIR PRESSURE DA CORRECTIONEnsures accurate air pressure reaching the set value.

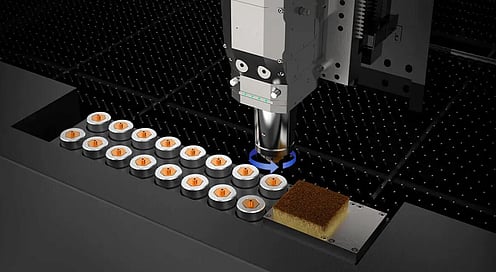

AUTOMATIC NOZZLE REPLACEMENTAutomatically replaces nozzles, aiding automated processing. Optional Extra.

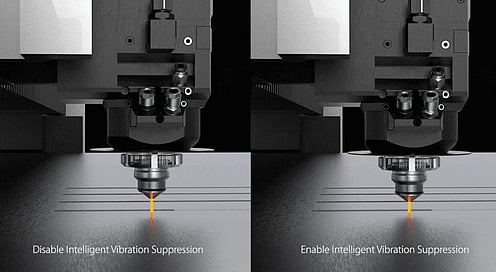

INTELLIGENT VIBRATION SUPPRESSIONZ-axis real-time automatic adjustment, reducing cutting jitter anomalies.

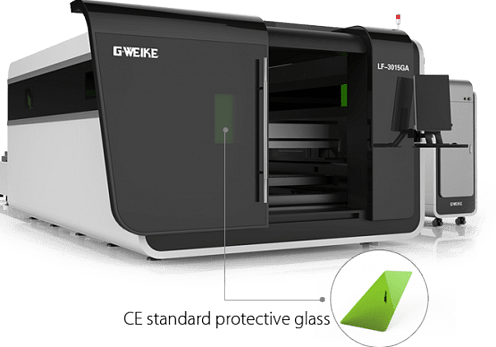

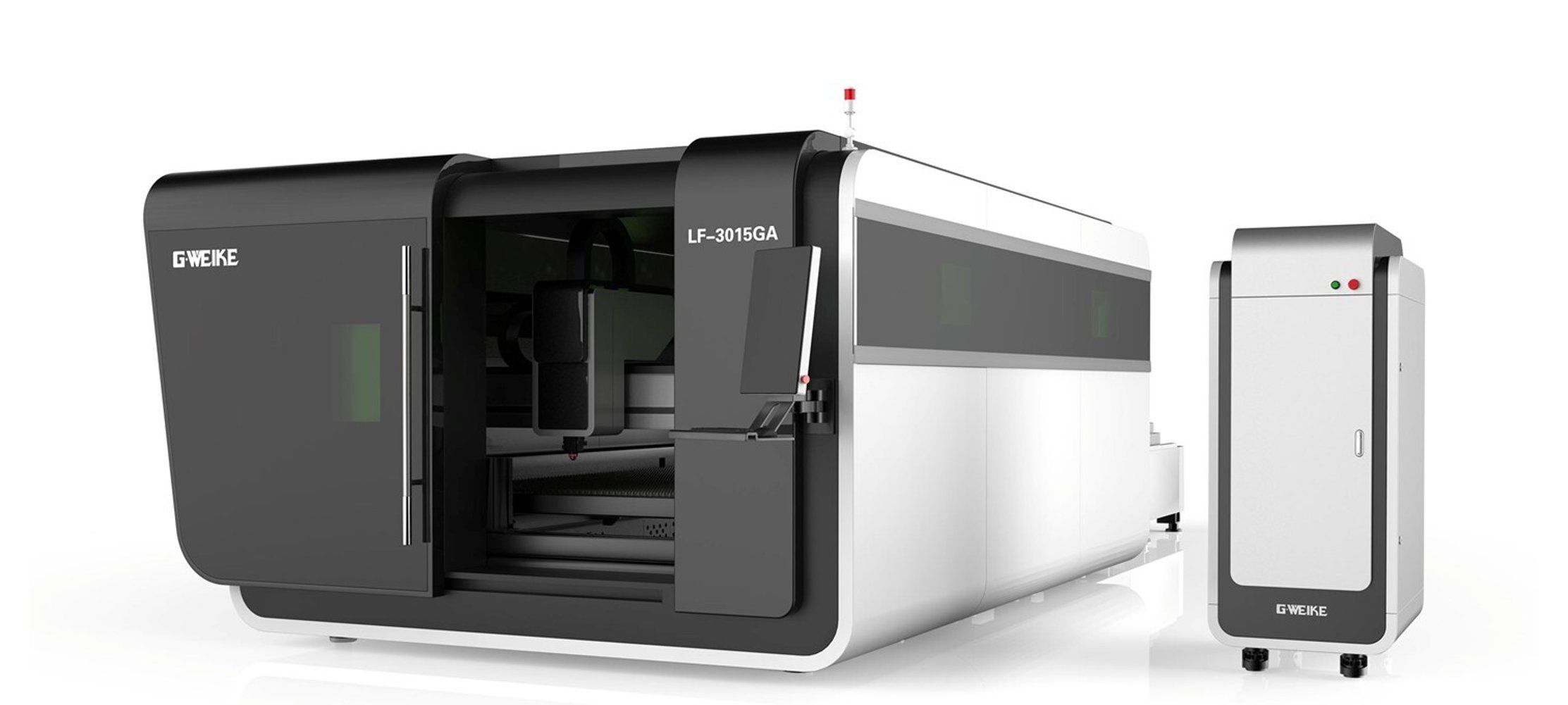

SAFETY With a fully enclosed safety design. The watch window adopts a European CE Standard laser protective glass. The smoke produced by cutting can be filtrated inside. Hence, a non-polluting and environmentally friendly design is achieved.

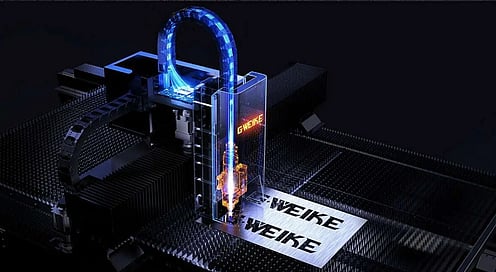

TRANSMISSION AND PRECISIONFiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor, and German Neugart reducer gear unit. The positioning accuracy of the machine tool is 0.02mm. The cutting acceleration is 1.5G.

CNC OPERATING SYSTEMThe CNC system integrates high productivity and simple operation. Supports most of the CNC files. In-built drawing and nesting tools for simple and quick jobs. Different cutting strategies can be applied to the nest.
